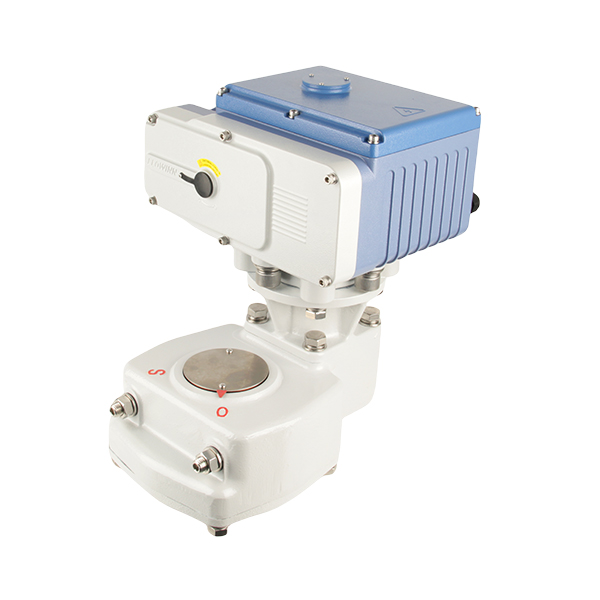

EOT400-600 series basic type quarter turn electric actuator

Short Description:

FLOWINN has rich experience in R&D and manufacturing in the electric actuator industry.EOT series compact 90° degree electric actuator is the motor through the rotary force of multi-stage reduction gear, worm gear, and other mechanisms and ultimately through the output shaft, in the form of rotation 90°to switch the valve device, primarily to drive and control the valve opening, such as ball valve, plug valve, butteryfly valve and other similar valve application. The shell of EOT series electric actuator adopts the pressed aluminum alloy shell and the anti-corrosion epoxy powder coating. The output torque range of EOT400-600 series is 4000-6000N.m, and there are primarily two kinds of control modes: modulating type and on/off type.


Product Detail

Product Tags

Product Video

Advantage

99

Warranty: 2 years
Limit Function:Double CAM design, convenient stroke setting.
Process Control: QR code tracking can directly trace the source of goods.
Appearance design: Exquisite appearance design, so that the actuator is suitable for a variety of small space scene
Operational Safety: In order to prevent overheating problems, the Class F insulation motor winding has a temperature of the motor switch that senses the motor's temperature. This guarantees the working safety of the motor.
Anti-Corrosion resistance: TThe shell of the actuator is coated with epoxy resin powder, which is corrosion resistant.
Indicator: Plane pointer and scale to show the valve opening, take uo little space.
Wiring Simple: Plug-in terminal for easy connection
Reliable Sealing: IP67 protection grade, O-ring can effectively prevent water leakage.
Moisture Resistance: Installed with heater inside the actuator to prevent condensation and extend the life of the actuator.
Manual Operation: After the power is cut off, open the rubber cover and insert the matching Z-wrench to open and close the valve manually.
Connecting Flange: In order to better connect with valve flanges with different hole positions and angles, EOT series electric actuators have two different sizes of double flanges and octagonal drive sleeves according to ISO5211 standard.
Packaging: Product packaging with pearl cotton, accord with ISO2248 drop test.

Standard Specification

Torque 4000-6000N.m
Ingress Protection IP67; Optional: IP68
Working Time On/off type: S2-15min; Modulating type: S4-50%
Applicable Voltage AC110/AC220V Optional: AC/DC24V, AC380V
Ambient Temperature -25°-60°
Relative Humidity ≤90%(25°C)
Motor Specifications Class F, with thermal protector
Output Connect ISO5211 direct connection, star bore
Modulating Functional Configuration Support loss signal mode, signal reversal selection function
Manual Device 6mm Allen manual wrench operation
Position Indicator Flat Pointer Indicator
Input Signal On/off type: On/off signal; Modulating type: Standard 4-20mA (input impedance: 150Ω); Optional:0-10V; 2-10V; Optoelectronic isolation
Output Signal On/off type: 2- dry contact and 2-wet contact; Modulating type: Standard 4-20mA (output impedance: ≤750Ω). Optional: 0-10V; 2-10V; Optoelectronic isolation
Cable Interface On/off type: 1*PG13.5; Modulating type: 2*PG13.5
Space Heater Standard

Performance Parmeter

微信截图_20231204094231

Dimension

8252

Package Size

PACKING-SIZE1

Our Factory

factory2

Certificate

cert11

Production Process

process1_03
process_03

Shipment

Shipment_01
